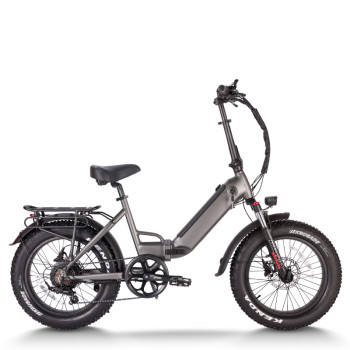

750W Folding eBike Color Display & Hydraulic Brakes 20x4.0 Fat Tires OEM/ODM White Label Solutions
- group name
- Folding eBike
- Min Order
- 1 piece
- brand name
- Cemoto Electric bike Wholesale Manufacturer
- model
- CEM-AEB57A
- Nearest port for product export
- Ningbo
- Delivery clauses under the trade mode
- FOB, CFR, CIF, EXW
- Acceptable payment methods
- T/T, L/C, D/P D/A, MoneyGram
- update time
- Tue, 13 May 2025 22:18:55 GMT
Paramtents
Available Color White / Gray
Motor 750W BLDC
Charger 54.6V2A UL
Max. Speed 20mph
Load Capacity 120kgs
N.W./G.W. 33kg/38kg
Carton Size 140*30*71CM
Packging & Delivery
- 140cm x30cm x71cm
-
Min Order1 piece
Briefing
B57A is a high-performance folding e-bike built for both comfort and capability.
Detailed
750W Folding eBike Description
● Powered by a powerful 750W BLDC motor and equipped with a high-capacity 48V13Ah Li-ion battery, it delivers impressive acceleration and extended range, enabling riders to tackle hills and navigate challenging terrains with ease.
● Featuring a sturdy 6061 aluminum frame and fat 20x4.0 Kenda tires, the B57A offers excellent stability and grip on various surfaces, from smooth city streets to rougher urban trails.
● With hydraulic disc brakes for reliable stopping power and a Shimano 7-speed drivetrain for versatile gear shifting, the B57A provides a smooth and confident riding experience for a wide range of riders.
750W Folding eBike Specification
| Parameter | Value |
| Motor | 750W BLDC |
| Battery | 48V13Ah Li-ion |
| Charger | 54.6V2A UL |
| Display | Color display 4” |
Frame | 6061 al alloy |
Fork | alloy suspension Lo |
Brakes | Hydraulic Disc XOD |
Tires | 20*4.0 KENDA |
Gears | SHIMANO 7-speed |
Max. Speed | 20mph |
Load Capacity | 120kgs |
N.W./G.W. | 33kg/38kg |
Carton Size | 140*30*71cm |
Available Color | Black / White |
750W Folding eBike Details
Three Riding Modes
Easily switch different riding needs can be calmly dealtwith, switch freely to meet different travel needs
20" X 4"
20"x4" Kenda K-shield fat tires provide strong grip and traction on rugged roads. Even on the most challenging terrains and weather conditions, these fat tires can guarantee your safety and offer you an easy and smooth riding experience.
· Gravel Road · Sandy Ground · Mountain · Brick Road · Wetland · Snowy Road · Grasses
Color LCD Display
The Backlit LCD display provides information on speed, mileage, power etc.
· USB Charging · Security Code · State of Riding · Fault Warning · Cycling Date · Function Set
What's on Handle
· Switch · Half twist throttle
· Front Light on/off · Shimano ·
· Rrear light on /off · gearbox
· Bell · info · Hydraulic Disk XOD
2X Thicker
It boasts an upgraded 6061 Aluminum frame that is 2 times thicker than conventional bike frames, with an integrated battery design.
Battery
The e-bike features a removable built-in battery that is smartly designed to withstand dust, dirt, rain, and other environmental hazards.
750W
Hub Motor
80NM(Max Torque) 1200W (Peak)
750W Upgraded Brushless Geared Hub Motor Use the latest updated inner ring specialized in high temperature resistance and better heat dissipation,The 750W brushless gear hub motor can help you conquer even the most regged terrain easily
FOC
Field oriented control
FOC as the central nervous system that orchestrates the motor's operations on the fly. It's intuitively aware of the riding environment and swiftly prompts the motor to deliver its best possible performance. By assessing invisible scooter metrics, FOC intelligently determines the appropriate reactions to your steering commands
1000+
Full Charge Cycles
It combines the new Samsung/LG battery technology with a 5000mAh single cell capacity in a smaller size but with larger diversity.
BMS
Ensure your Safety
Safeguarding your ride with intelligent battery protection for enhanced longevity and performance.
Illuminate Your Journey: Powerful Headlights for Enhanced Visibility & Safety
Ensure rider safety and enhance visibility with our high-powered LED headlights.
Designed for optimal beam pattern and maximum brightness, our headlights illuminate the path ahead, improving rider confidence and safety in low-light conditions.
Customizable options available to match your brand aesthetic.
Stay Visible: Bright Taillights for Increased Rider Safety
Enhance rider visibility and safety with our integrated taillights.
Featuring high-intensity LEDs and a distinctive design, our taillights provide excellent visibility to other road users, ensuring a safer riding experience.
Customizable options available to match your brand aesthetic.
Precise Shifting, Smooth Performance: Shimano 7-Speed Drivetrain
Experience smooth and precise shifting with our integrated Shimano 7-speed drivetrain.
Offering a wide range of gears, this high-quality drivetrain ensures optimal performance on various terrains, from flat city streets to challenging inclines.
Delivering a superior riding experience for your customers.
Geometry
| A – Total length | B – Handlebar height |
| 175cm | 125cm |
| C – Rear hanger height | D – Seat height |
65cm | 81cm |
E – Seat tube height | F – Folded width |
| 20cm | 64cm |
G – Folded length | H – Folded height |
89cm | 77cm |
